Primeiro Tour, Passo 2

3 ⇒
Crie os Metadados de Argow

O modo mais simples de criar os metadados e executando o script abaixo. Selecione todo o texto, copie e cole em uma nova query a ser executado em arDemo:

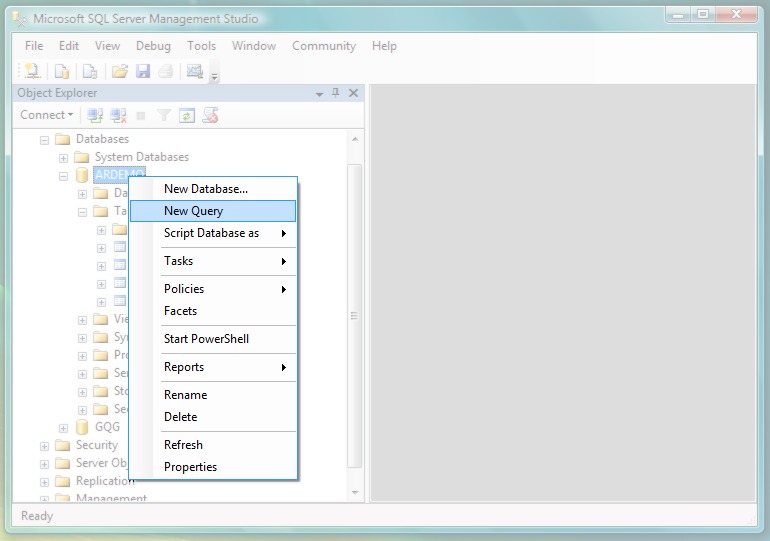

Nova Query em Microsoft SQL Manager Studio

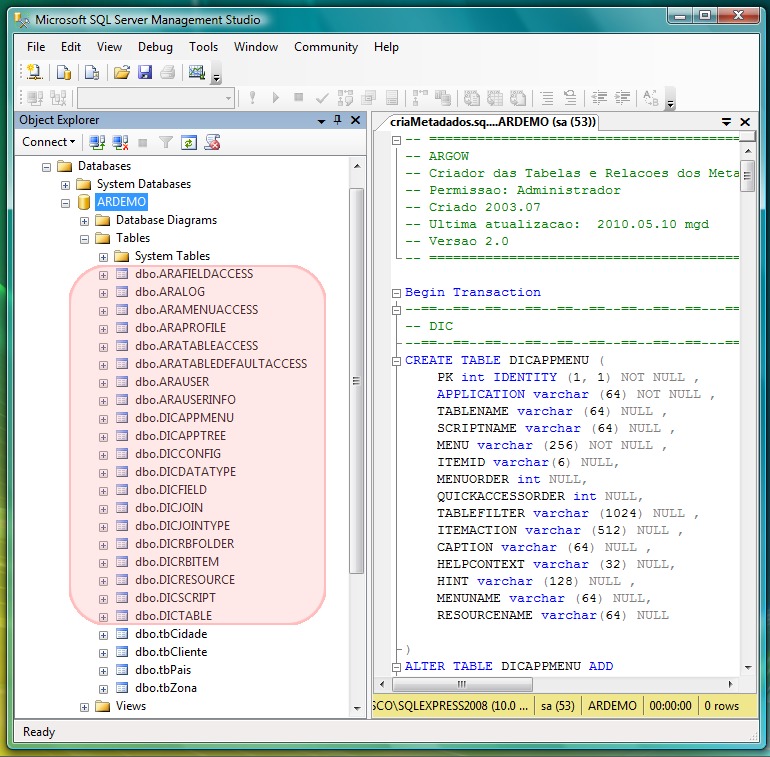

Script SQL Criação de Metadados
-- ======================================================================================
-- ARGOW
-- Criador das Tabelas e Relacoes dos Metadados do Argow
-- Permissao: Administrador
-- Criado 2003.07
-- Ultima atualizacao:  2010.11.11 mgd
-- Versao 2.1
-- ======================================================================================

Begin Transaction
--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
-- DIC
--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICAPPMENU (
	PK int IDENTITY (1, 1) NOT NULL ,
	APPLICATION varchar (64) NOT NULL ,
	TABLENAME varchar (64) NULL ,
	SCRIPTNAME varchar (64) NULL ,
	MENU varchar (254) NOT NULL ,
	ITEMID varchar(6) NULL,
	MENUORDER int NULL,
	QUICKACCESSORDER int NULL,
	TABLEFILTER varchar (1024) NULL ,
	ITEMACTION varchar (254) NULL ,
	CAPTION varchar (64) NULL ,
	HELPCONTEXT varchar (32) NULL,
	HINT varchar (128) NULL ,
	MENUNAME varchar (64) NULL,
	RESOURCENAME varchar(64) NULL

)
ALTER TABLE DICAPPMENU ADD
	CONSTRAINT PK_DICAPPMENU PRIMARY KEY NONCLUSTERED (PK)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICCONFIG (
	PK int IDENTITY (1, 1) NOT NULL ,
	APPLICATION varchar (64) NOT NULL ,
	VARNAME varchar (64) NULL ,
	VARVALUE varchar (1024) NULL ,
	DESCRIPTION varchar (128) NULL
)

ALTER TABLE DICCONFIG WITH NOCHECK ADD
	CONSTRAINT PK_DICCONFIG PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT IX_DICCONFIG UNIQUE NONCLUSTERED (APPLICATION, VARNAME)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICAPPTREE (
	PK int IDENTITY (1, 1) NOT NULL ,
	APPLICATION varchar (64) NOT NULL ,
	TREENAME varchar (64) NOT NULL ,
	TREEPARENT int NULL ,
	TREEORDER int NULL ,
	TABLENAME varchar (64) NOT NULL ,
	TABLEALIAS varchar (64) NULL ,
	DISPLAYINFO varchar (64) NOT NULL ,
	KEYFIELDS varchar (64) NOT NULL ,
	KEYFIELDSPARENT varchar (64) NULL ,
	TABLEFILTER varchar (1024) NULL ,
	ITEMACTION varchar (254) NULL ,
	DISABLED varchar (1) NULL
)
ALTER TABLE DICAPPTREE WITH NOCHECK ADD
	CONSTRAINT PK_DICAPPTREE PRIMARY KEY CLUSTERED (PK)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICJOINTYPE (
	PK int IDENTITY (1, 1) NOT NULL ,
	JOINTYPE varchar (32) NOT NULL
)

ALTER TABLE DICJOINTYPE WITH NOCHECK ADD
	CONSTRAINT PK_DICJOINTYPE PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT IX_DICJOINTYPE UNIQUE NONCLUSTERED (JOINTYPE)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICTABLE (
	PK int IDENTITY (1, 1) NOT NULL ,
	TABLENAME varchar (64) NOT NULL ,
	TABLEALIAS varchar (64) NOT NULL ,
	PRIMARYKEY varchar (64) NULL ,
	LOADALLRECORDS char (1) NULL ,
	[READONLY] [char] (1) NULL ,
	[PROTECTED] [char](1) NULL,
	[AUXILIARY] [char](1) NULL,
	[VIRTUAL] [char](1) NULL,
 	TABLEFILTER varchar (1024) NULL ,
	ITEMACTION varchar (254) NULL ,
	VIEWS varchar (64) NULL ,
	HELPCONTEXT varchar (32) NULL,
	[DESCRIPTION] varchar (128) NULL
)
ALTER TABLE DICTABLE WITH NOCHECK ADD
	CONSTRAINT PK_DICTABLE PRIMARY KEY NONCLUSTERED (PK),
	CONSTRAINT IX_DICTABLE UNIQUE NONCLUSTERED (TABLENAME)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICDATATYPE (
	PK int IDENTITY (1, 1) NOT NULL ,
	DATATYPE varchar (64) NOT NULL ,
	BASICDATATYPE varchar (64) NOT NULL ,

	-- Shared with DICFIELD
	[READONLY] char (1) NULL ,
	[REQUIRED] char (1) NULL ,
	MODIFIABLE char (1) NULL DEFAULT ('T'),
	CANDIDATE char (1) NULL ,
	CALCULATED char (1) NULL ,

	CUSTOMCONSTRAINT varchar (254) NULL ,
	CONSTRAINTERRORMESSAGE varchar (254) NULL ,
	EDITMASK varchar (64) NULL ,
	DISPLAYMASK varchar (64) NULL ,
	DEFAULTVALUE varchar (254) NULL,

	HINT varchar (128) NULL ,
	HELPCONTEXT varchar (32) NULL ,
	DESCRIPTION varchar (128) NULL,
	DATAEDITOR varchar (254) NULL ,
	FORMULA varchar (2048) NULL ,

)
ALTER TABLE DICDATATYPE WITH NOCHECK ADD
	CONSTRAINT PK_DICDATATYPE PRIMARY KEY NONCLUSTERED	(PK),
	CONSTRAINT IX_DICDATATYPE UNIQUE NONCLUSTERED (DATATYPE)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICFIELD (
	PK int IDENTITY (1, 1) NOT NULL ,
	TABLENAME varchar (64) NOT NULL ,
	FIELDNAME varchar (64) NOT NULL ,
	FIELDALIAS varchar (64) NULL ,
	DATATYPE varchar (64) NOT NULL ,
	HIDE char (1) NULL ,

	-- Shared with DICDATATYPE
	[READONLY] char (1) NULL ,
	[REQUIRED] char (1) NULL ,
	MODIFIABLE char (1) NULL DEFAULT ('T'),
	CANDIDATE char (1) NULL ,
	CALCULATED char (1) NULL ,

	CUSTOMCONSTRAINT varchar (254) NULL ,
	CONSTRAINTERRORMESSAGE varchar (254) NULL ,
	EDITMASK varchar (64) NULL ,
	DISPLAYMASK varchar (64) NULL ,
	DEFAULTVALUE varchar (254) NULL,

	HINT varchar (128) NULL ,
	HELPCONTEXT varchar (32) NULL ,
	DESCRIPTION varchar (128) NULL,
	DATAEDITOR varchar (254) NULL ,
	FORMULA varchar (2048) NULL ,

	-- Report Builder
	SELECTABLE char (1) NULL DEFAULT ('T') ,
	SEARCHABLE char (1) NULL DEFAULT ('T') ,
	SORTABLE char (1) NULL DEFAULT ('T') ,
	AUTOSEARCH char (1) NULL DEFAULT ('T') ,
	MANDATORY char (1) NULL
)

ALTER TABLE DICFIELD WITH NOCHECK ADD
	CONSTRAINT PK_DICFIELD PRIMARY KEY NONCLUSTERED (PK),
	CONSTRAINT IX_DICFIELD UNIQUE NONCLUSTERED (TABLENAME, FIELDNAME)

ALTER TABLE DICFIELD ADD
	CONSTRAINT FK_DICFIELD_DICDATATYPE FOREIGN KEY (DATATYPE) REFERENCES DICDATATYPE (DATATYPE),
	CONSTRAINT FK_DICFIELD_DICTABLE FOREIGN KEY (TABLENAME) REFERENCES DICTABLE (TABLENAME)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICJOIN (
	PK int IDENTITY (1, 1) NOT NULL ,
	TABLEMASTER varchar (64) NOT NULL ,
	TABLEDETAIL varchar (64) NOT NULL ,
	FIELDSMASTER varchar (254) NOT NULL ,
	FIELDSDETAIL varchar (254) NOT NULL ,
	ISLOOKUP char (1) NOT NULL ,
	RESULTFIELDS varchar (254) NULL ,
	RESULTALIAS varchar (254) NULL ,
	TABORDER int NULL,
	ITEMACTION varchar (254) NULL ,
	LOADFIELDS varchar (254) NULL ,
	LOADALIAS varchar (254) NULL ,
	LOADNAMES varchar (254) NULL ,
	TABLEFILTER varchar (1024) NULL ,
	RESULTNAME varchar (254) NULL ,
	-- Report Builder
	JOINTYPE varchar (32) NOT NULL ,
	OPERATORS varchar (32) NULL ,
)


ALTER TABLE DICJOIN WITH NOCHECK ADD
	CONSTRAINT PK_DICJOIN PRIMARY KEY NONCLUSTERED (PK)

ALTER TABLE DICJOIN ADD
	CONSTRAINT FK_DICJOIN_DICJOINTYPE FOREIGN KEY (JOINTYPE) REFERENCES DICJOINTYPE ( JOINTYPE ),
	CONSTRAINT FK_DICJOIN_DICTABLEMASTER FOREIGN KEY (TABLEMASTER) REFERENCES DICTABLE (TABLENAME),
	CONSTRAINT FK_DICJOIN_DICTABLEDETAIL FOREIGN KEY (TABLEDETAIL) REFERENCES DICTABLE (TABLENAME)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICRESOURCE (
	PK int IDENTITY (1, 1) NOT NULL ,
	RESOURCENAME varchar (64) NOT NULL ,
	STYLE varchar (32) NULL ,
	RESOURCEDATA image NULL , -- MS-SQL Image
	TRANSPARENTCOLOR varchar (32) NULL
)

ALTER TABLE DICRESOURCE WITH NOCHECK ADD
	CONSTRAINT PK_DICRESOURCE PRIMARY KEY NONCLUSTERED (PK),
	CONSTRAINT IX_DICRESOURCE UNIQUE NONCLUSTERED (STYLE,RESOURCENAME )
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICSCRIPT (
	PK int IDENTITY (1, 1) NOT NULL ,
	SCRIPTNAME varchar (64) NOT NULL ,
	SCRIPTALIAS varchar (64) NOT NULL ,
	SCRIPTBODY varchar (2048) NULL ,
	[DESCRIPTION] varchar (128) NULL ,
	RESOURCENAME varchar (64) NULL
)
ALTER TABLE DICSCRIPT WITH NOCHECK ADD
	CONSTRAINT PK_DICSCRIPT PRIMARY KEY NONCLUSTERED (PK),
	CONSTRAINT IX_DICSCRIPT UNIQUE NONCLUSTERED (SCRIPTNAME)

ALTER TABLE DICAPPMENU ADD
	CONSTRAINT FK_DICAPPMENU_DICTABLE FOREIGN KEY (TABLENAME) REFERENCES DICTABLE (TABLENAME)

ALTER TABLE DICAPPTREE ADD
 CONSTRAINT FK_DICAPPTREE_DICTABLE FOREIGN KEY (TABLENAME) REFERENCES DICTABLE(TABLENAME)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
---- AR Access & Security
--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARAUSER (
	[USER_ID] int IDENTITY (1, 1) NOT NULL ,
	[USER_NAME] varchar (32) NOT NULL ,
	USER_REAL_NAME varchar (64) NULL ,
	PROF_ID int NULL ,
	USER_PWD varchar (128) NULL ,
	USER_EMAIL varchar (128) NULL ,
	LAST_PWD_CHANGE datetime NULL ,
	MUST_CHANGE_PWD char (1) NULL DEFAULT ('F'),
	AUDIT_MODE char (1) NULL DEFAULT ('F')
)
ALTER TABLE ARAUSER WITH NOCHECK ADD
	CONSTRAINT PK_ARAUSER PRIMARY KEY CLUSTERED (USER_ID),
	CONSTRAINT IX_ARAUSER UNIQUE NONCLUSTERED (USER_NAME)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARAPROFILE (
	PROF_ID int IDENTITY (1, 1) NOT NULL ,
	PROF_NAME varchar (64) NOT NULL ,
	INTERVAL_CHANGE_PWD int NULL ,
	MUST_CHANGE_PWD_FROM datetime NULL,
	AUDIT_MODE char (1) NULL DEFAULT ('F')
)
ALTER TABLE ARAPROFILE WITH NOCHECK ADD
	CONSTRAINT PK_ARAPROFILE PRIMARY KEY CLUSTERED (PROF_ID),
	CONSTRAINT IX_ARAPROFILE UNIQUE NONCLUSTERED (PROF_NAME)

ALTER TABLE ARAUSER ADD
	CONSTRAINT FK_ARAUSER_ARAPROFILE FOREIGN KEY (PROF_ID) REFERENCES ARAPROFILE (PROF_ID)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARAFIELDACCESS (
	PK int IDENTITY (1, 1) NOT NULL ,
	[USER_ID] int NULL ,
	PROF_ID int NULL ,
	TABLENAME varchar (64) NOT NULL ,
	FIELDNAME varchar (64) NOT NULL ,
	AC_VIEW char (1) NULL DEFAULT ('F'),
	AC_EDIT char (1) NULL DEFAULT ('F')
)

ALTER TABLE ARAFIELDACCESS WITH NOCHECK ADD
	CONSTRAINT PK_ARAFIELDACCESS PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT FK_ARAFIELDACCESS_ARAUSER FOREIGN KEY (USER_ID) REFERENCES ARAUSER (USER_ID),
	CONSTRAINT FK_ARAFIELDACCESS_ARAPROFILE FOREIGN KEY (PROF_ID) REFERENCES ARAPROFILE (PROF_ID),
	CONSTRAINT FK_ARAFIELDACCESS_DICFIELD FOREIGN KEY (TABLENAME, FIELDNAME) REFERENCES DICFIELD (TABLENAME, FIELDNAME)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARATABLEACCESS (
	PK int IDENTITY (1, 1) NOT NULL ,
	TABLENAME varchar (64) NOT NULL ,
	[USER_ID] int NULL ,
	PROF_ID int NULL ,
	LOG_TABLE char (1) NULL,
	AC_VIEW char (1) NULL,
	AC_PRINT char (1) NULL,
	AC_SCRIPT char (1) NULL,
	AC_DELETE char (1) NULL,
	AC_INSERT char (1) NULL,
	AC_EDIT char (1) NULL
)
ALTER TABLE ARATABLEACCESS WITH NOCHECK ADD
	CONSTRAINT PK_ARATABLEACCESS PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT FK_ARATABLEACCESS_ARAUSER FOREIGN KEY (USER_ID) REFERENCES ARAUSER (USER_ID),
	CONSTRAINT FK_ARATABLEACCESS_ARAPROFILE FOREIGN KEY (PROF_ID) REFERENCES ARAPROFILE (PROF_ID),
	CONSTRAINT FK_ARATABLEACCESS_DICTABLE FOREIGN KEY (TABLENAME) REFERENCES DICTABLE (TABLENAME)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARATABLEDEFAULTACCESS (
	PK int IDENTITY (1, 1) NOT NULL ,
	[APPLICATION] varchar (64) NOT NULL ,
	TABLENAME varchar (64) NOT NULL ,
	TABLEFILTER varchar (1024) NULL ,
	ITEMACTION varchar (254) NULL ,
	LOG_TABLE char (1) NULL DEFAULT ('F'),
	AC_VIEW char (1) NULL DEFAULT ('T'),
	AC_PRINT char (1) NULL DEFAULT ('T'),
	AC_SCRIPT char (1) NULL DEFAULT ('T'),
	AC_DELETE char (1) NULL DEFAULT ('T'),
	AC_INSERT char (1) NULL DEFAULT ('T'),
	AC_EDIT char (1) NULL DEFAULT ('T')

)
ALTER TABLE ARATABLEDEFAULTACCESS WITH NOCHECK ADD
	CONSTRAINT PK_ARATABLEDEFAULTACCESS PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT IX_ARATABLEDEFAULTACCESS UNIQUE NONCLUSTERED ( APPLICATION, TABLENAME),
	CONSTRAINT FK_ARATABLEDEFAULTACCESS_DICTABLE FOREIGN KEY (TABLENAME) REFERENCES DICTABLE (TABLENAME)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARALOG (
	PK int IDENTITY (1, 1) NOT NULL ,
	[USER_ID] int NOT NULL ,
	LOG_TABLE varchar (64) NULL ,
	LOG_WHEN datetime NULL ,
	LOG_EVENT char (1) NULL ,
	LOG_KEY varchar (64) NULL ,
	LOG_DATA char (1024) NULL ,
	LOG_TEXT text NULL
)
ALTER TABLE ARALOG WITH NOCHECK ADD
	CONSTRAINT PK_ARALOG PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT FK_ARALOG_ARAUSER FOREIGN KEY (USER_ID) REFERENCES ARAUSER (USER_ID)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARAMENUACCESS (
	PK int IDENTITY (1, 1) NOT NULL ,
	[USER_ID] int NULL ,
	PROF_ID int NULL ,
	MENUNAME varchar (64) NOT NULL ,
	[ENABLED] char (1) NULL DEFAULT ('T')
)
ALTER TABLE ARAMENUACCESS WITH NOCHECK ADD
	CONSTRAINT PK_ARAMENUACCESS PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT FK_ARAMENUACCESS_ARAUSER FOREIGN KEY (USER_ID) REFERENCES ARAUSER (USER_ID),
	CONSTRAINT FK_ARAMENUACCESS_ARAPROFILE FOREIGN KEY (PROF_ID) REFERENCES ARAPROFILE (PROF_ID)

GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE ARAUSERINFO (
	PK int IDENTITY (1, 1) NOT NULL ,
	[APPLICATION] varchar (64) NOT NULL ,
	[USER_ID] int NOT NULL ,
	EXPIRATION_DATE datetime NULL ,
	USER_DISABLED char (1) NULL DEFAULT ('F'),
	USER_LOGGED char (1) NULL DEFAULT ('F'),
	USER_LOGGED_PC varchar (64) NULL ,
	USER_LOGGED_DATE datetime NULL ,
	USER_IS_POWER char (1) NULL DEFAULT ('F'),
	USER_CONFIG text NULL ,
	INTERVAL_CHANGE_PWD int NULL,
	ITEMACTION varchar (254) NULL
)
ALTER TABLE ARAUSERINFO WITH NOCHECK ADD
	CONSTRAINT PK_ARAUSERINFO PRIMARY KEY CLUSTERED (PK),
	CONSTRAINT IX_ARAUSERINFO UNIQUE NONCLUSTERED (APPLICATION, USER_ID),
	CONSTRAINT FK_ARAUSERINFO_ARAUSER FOREIGN KEY (USER_ID) REFERENCES ARAUSER (USER_ID)
GO

--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
-- Report Builder
--==--==--==---==--==--==--==--==--==---==--==--==--==--==--==---==--==--==--==
CREATE TABLE DICRBFOLDER (
	FOLDERID int IDENTITY (1, 1) NOT NULL ,
	FOLDERNAME varchar (64) NOT NULL ,
	PARENTID int NOT NULL
)
ALTER TABLE DICRBFOLDER WITH NOCHECK ADD
	CONSTRAINT PK_DICRBFOLDER PRIMARY KEY NONCLUSTERED (FOLDERID),
	CONSTRAINT IX_DICRBFOLDER UNIQUE NONCLUSTERED (FOLDERNAME, PARENTID)
GO


CREATE TABLE DICRBITEM (
	ITEMID int IDENTITY (1, 1) NOT NULL ,
	FOLDERID int NOT NULL ,
	ITEMNAME varchar (64) NOT NULL ,
	ITEMSIZE int NULL ,
	ITEMTYPE int NOT NULL ,
	MODIFIED datetime NULL ,
	DELETED datetime NULL ,
	TEMPLATE text NULL ,
	APPLICATIONS varchar (254) NULL ,
	ONMENU char(1) NULL,
	RESOURCENAME varchar (64) NULL,
	PROF_ID int NULL,
	[USER_ID] int NULL,
	ITEMACTION varchar (254) NULL
)
ALTER TABLE DICRBITEM WITH NOCHECK ADD
	CONSTRAINT PK_DICRBITEM PRIMARY KEY NONCLUSTERED (ITEMID),
	CONSTRAINT FK_DICRBITEM_ARAUSER FOREIGN KEY (USER_ID) REFERENCES ARAUSER (USER_ID),
	CONSTRAINT FK_DICRBITEM_ARAPROFILE FOREIGN KEY (PROF_ID) REFERENCES ARAPROFILE (PROF_ID)

GO


Commit
--Rollback Transaction
Após executado e atualizado, visualizará 20 novas tabelas, que formam os metadados de Argow:
Metadatos em Microsoft SQL Manager Studio
